letalker.function_generators

Function and noise generators are the foundation to numerical voice simulation to generate time samples of various input signals and parameters. Function generators allow you to construct time-varying model parameters while noise generators are essential to add turbulent or ambient noise to the voice signals.

All classes in this module are a subclass of the abc.SampleGenerator abstract class. There are 3 abstract subclasses to further categorize:

class	description
abc.FunctionGenerator	abstract class to define __call__(), derivative(), and antiderivative() generation methods
abc.AnalyticFunctionGenerator	subclass of FunctionGenerator, requiring fo argument to construct. and accepts analytic bool keyword argument to the generation methods to generate the analytic signals.
abc.NoiseGenerator	abstract class for random noise generation via __call__()

• Concrete classes of abc.FunctionGenerator:

class	description
Constant	constant (for adding tapering effects; otherwise use float)
StepGenerator	piece-wise constants, stepping from one constant value to another
LineGenerator	linear function generator
Interpolator	B-Spline interpolator
ClampedInterpolator	B-Spline interpolator, extrapolating by holding its endpoints

• Concrete classes of abc.AnalyticFunctionGenerator:

class	description
PeriodicInterpolator	B-Spline interpolator, extrapolating by endlessly repeating the control points
SineGenerator	Pure sinusoid generator
FlutterGenerator	Sum of sinusoids to generate quasi-random drift
ModulatedSineGenerator	Sinusoid generator with amplitude and frequency modulation
RosenbergGenerator	Glottal flow pulse train generator per (Rosenberg, 1971)

• Concrete classes of abc.NoiseGenerator:

class	description
WhiteNoiseGenerator	White noise generator
ColoredNoiseGenerator	Colored noise generator

Common attributes of abc.SampleGenerator subclasses

# common properties
function_generator.shape # shape of an individual time sample
function_generator.ndim # number of dimensions of an individual time sample
function_generator.fs # sampling rate in samples/second

# common method
t = function_generator.ts(nb_samples=1000, n0=-500)
# generates time vector `t` which is 1000 samples long, starting from the index -500.
# With the default fs = 44100: t[0] = -500/44100, t[1] = -499/44100, ...
# If `function_generator.ndim>1`, `t` is an `(ndim+1)`-dimensional array with the 0-th
# dimension as the time dimension.

n = int(lt.fs)  # 1 second demos
t = lt.ts(lt.fs) # time vector

Constant

Constant class simply holds the specified value all the time, unless the transition_time is set.

gen0 = lt.Constant(0.98)
gen1 = lt.Constant(0.45)

fig, axes = plt.subplots(2, 1, sharex=True, sharey=True)

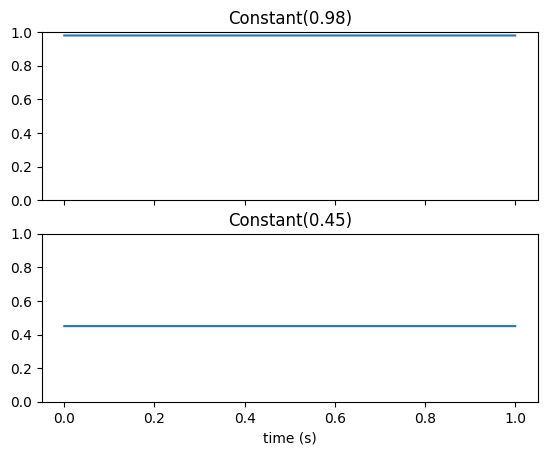

axes[0].plot(t, gen0(n, force_time_axis='tile_data'))
axes[0].set_title("Constant(0.98)")
axes[1].plot(t, gen1(n, force_time_axis='tile_data'))
axes[1].set_title("Constant(0.45)")
axes[1].set_xlabel("time (s)")
axes[1].set_ylim((0, 1))

(0.0, 1.0)

NOTE: For faster simulation, a Constant object without any transition effects (i.e., truly holding a value at all time like shown above), by default evaluates only one value (e.g., gen0(n) would return 0.98). Setting the force_time_axis keyword argument to True forces the object to return a NumPy array of repeated values (useful for plotting).

from letalker.constants import PL

gen = lt.Constant(PL, transition_time=0.001)
# the default transition is a 2-ms raised-cosine transition

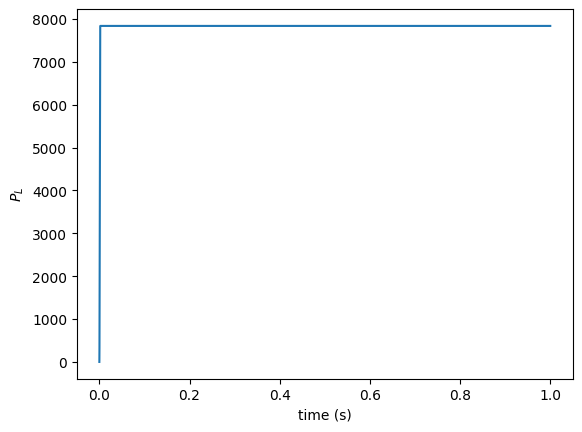

plt.plot(t, gen(n))
plt.xlabel("time (s)")
plt.ylabel("$P_L$")

Text(0, 0.5, '$P_L$')

StepGenerator - hold specific values in a sequential order

The transition_time of Constant class only lets you switch the value between the specified value and 0. The StepGenerator class generalizes this behavior and let you specify multiple values to hold. The transitions are by default raised-cosines over 2-ms long.

gen = lt.StepGenerator(transition_times=[0.25, 0.5, 0.75], levels=[0, 1, 4, 3])
# note levels has one more item than transition_times

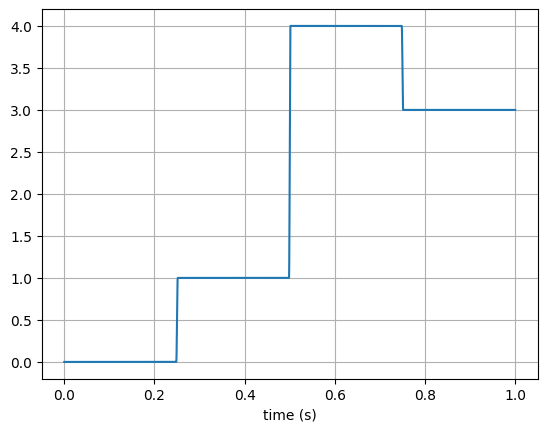

plt.plot(t, gen(lt.fs))
plt.xlabel("time (s)")
plt.grid()

Using this class, we can create a vocal tract area profile which traverses through multiple vowels…

from letalker.constants import (
    vocaltract_areas as areas,
    vocaltract_names as names,
    vocaltract_resolution,
)

names = [vowel for vowel in names[:10]]
areas = np.stack([areas[vowel] for vowel in names], 0)
transition_times = np.arange(1, len(names)) * 0.1

vtarea_fun = lt.StepGenerator(transition_times, areas, transition_time_constant=0.02)
print(vtarea_fun.fs)

area = vtarea_fun(n)
print(area.shape)
plt.imshow(
    area.T,
    extent=[0, 1.0, -0.5 * vocaltract_resolution, 44.5 * vocaltract_resolution],
    origin="lower",
    aspect="auto",
)
for i, name in enumerate(names):
    ti = i * 0.1 + 0.05
    plt.annotate(
        name, (ti, 0.01), xycoords=("data", "axes fraction"), c="w", ha="center"
    )
plt.xlabel("time (s)")
plt.ylabel("distance from glottis (cm)")

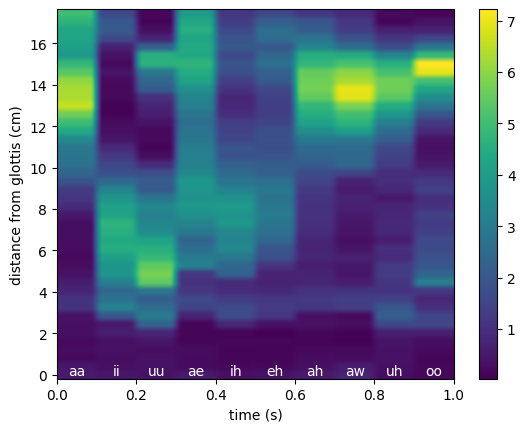

plt.colorbar()

44100
(44100, 44)

<matplotlib.colorbar.Colorbar at 0x7f90204ae390>

LineGenerator

LineGenerator creates a steady transition from one level to another. Outside of the two end points may be held to their levels or continue the linear trend indefinitely.

tp = (0.2, 0.8)
xp = (0.98, 0.24)
gen0 = lt.LineGenerator(tp, xp)
gen1 = lt.LineGenerator(tp, xp, outside_values="extend")

fig, axes = plt.subplots(2, 1, sharex=True, sharey=True)

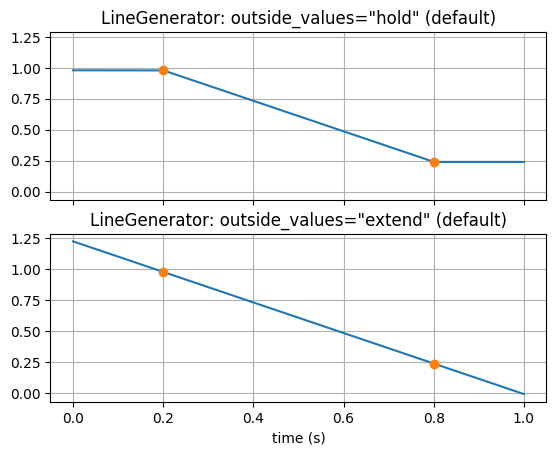

axes[0].plot(t, gen0(n))
axes[0].plot(tp, xp, "o")
axes[0].set_title('LineGenerator: outside_values="hold" (default)')
axes[0].grid()
axes[1].plot(t, gen1(n))
axes[1].plot(tp, xp, "o")
axes[1].set_title('LineGenerator: outside_values="extend" (default)')
axes[1].set_xlabel("time (s)")
axes[1].grid()

Interpolators: Interpolator, ClampedInterpolator, & PeriodicInterpolator

These three Interpolator function generator classes perhaps are the most critical to construct time-varying parameters for speech-like voice samples. These generators support multidimensional functions (e.g., vocal tract cross-sectional areas). By default, this class uses B-splines for interpolation, but other polynomial based interpolators are also supported.

tp = [0.1, 0.35, 0.64, 0.87]
xp = [0, 1, 4, 3]
gen1 = lt.Interpolator(tp, xp, degree=1)
gen2 = lt.Interpolator(tp, xp, degree=2)
gen3 = lt.Interpolator(tp, xp, degree=3)

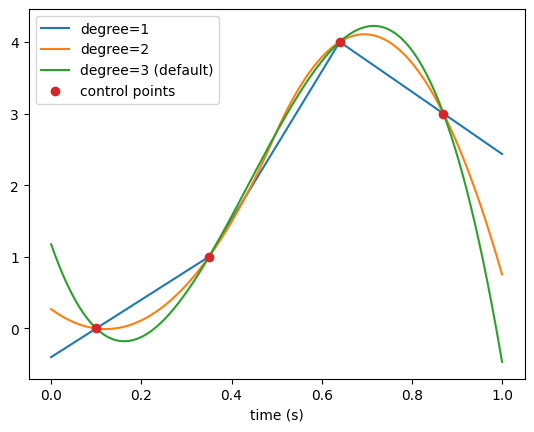

plt.plot(t, gen1(n), label="degree=1")
plt.plot(t, gen2(n), label="degree=2")
plt.plot(t, gen3(n), label="degree=3 (default)")
plt.plot(tp, xp, "o", label="control points")
plt.xlabel("time (s)")
plt.legend()

<matplotlib.legend.Legend at 0x7f901e2e46b0>

Example of multi-dimensional interpolator

tp = [0.1, 0.35, 0.64, 0.87]
xp = [[0, 6], [1, 2], [4, 4], [3, 1]]
gen = lt.Interpolator(tp, xp)

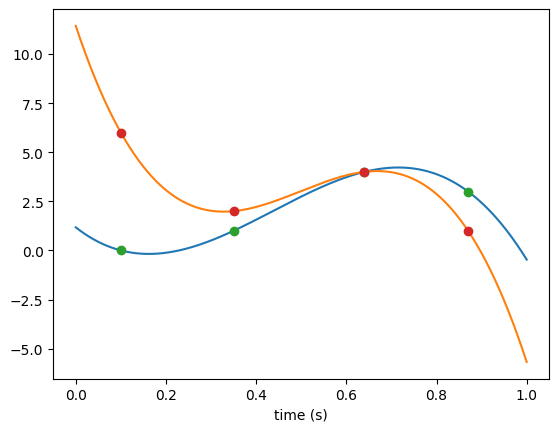

plt.plot(t, gen(n))
plt.plot(tp, xp, "o")
plt.xlabel("time (s)")

Text(0.5, 0, 'time (s)')

The two sub-flavors of Interpolator classes ClampedInterpolator and PeriodicInterpolator. Here is an example of how these three interpolator classes behave with the same set of control points.

tp = [0, 0.15, 0.24, 0.37, 0.4]
xp = [0, 1, 4, 3, 0]

gen1 = lt.Interpolator(tp, xp)
gen2 = lt.ClampedInterpolator(tp, xp)
gen3 = lt.PeriodicInterpolator(tp, xp)

n0 = round(-0.1 * lt.fs)
t1 = lt.ts(n, n0)

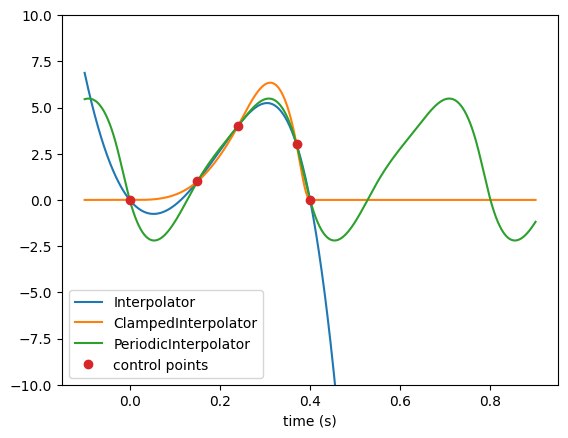

plt.plot(t1, gen1(n, n0), label="Interpolator")
plt.plot(t1, gen2(n, n0), label="ClampedInterpolator")
plt.plot(t1, gen3(n, n0), label="PeriodicInterpolator")
plt.plot(tp, xp, "o", label="control points")
plt.xlabel("time (s)")
plt.ylim(-10, 10)
plt.legend()

<matplotlib.legend.Legend at 0x7f90206113a0>

Note PeriodicInterpolator is also a subclass of AnalyticFunctionGenerator but its analytic signal generation is approximate, relying on scipy.signal.hilbert().

FlutterGenerator - slow quasi-random drift

Flutter is an \(f_o\) effect introduced by Klatt and Klatt (1990) to simulate jitter in voice. This technique (a sum of slow unrelated sinusoids to produce drift) is also useful to perturb any synthesis parameter. The original formulation is an equal sum of 3 sinusoids with carefully picked frequencies, multiplied by a common gain (FL/100*fo/100). In pyLeTalker package, FlutterGenerator class is a generalized version, in which the number of sinusoids and frequencies can be modified, and the frequencies can be selected randomly.

gen1 = lt.FlutterGenerator(0.1, 4, 3)  # default bias = 0.0

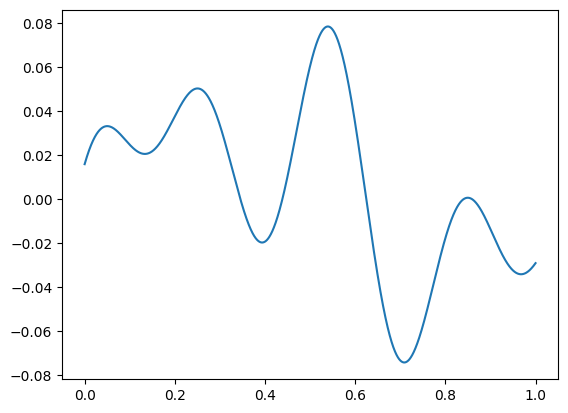

plt.plot(t, gen1(lt.fs))

[<matplotlib.lines.Line2D at 0x7f9018f41580>]

SineGenerator

This class is the key to define the kinematic vocal folds’ motion.

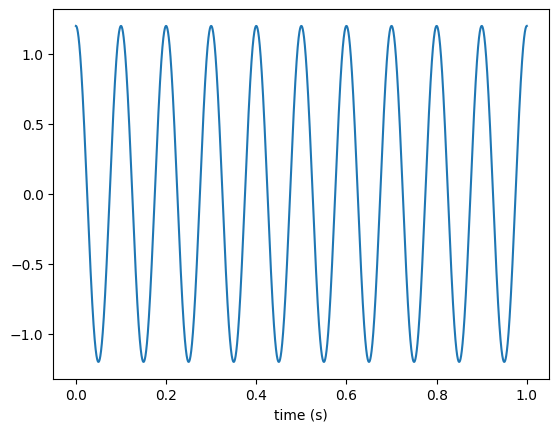

gen = lt.SineGenerator(fo=10, A=1.2, phi0=np.pi / 2)
plt.plot(t, gen(n))
plt.xlabel("time (s)")

Text(0.5, 0, 'time (s)')

Any function generator could be used for A parameter:

# time-varyinng amplitude
Atv = lt.LineGenerator((0, 1), (0.8, 1.2))

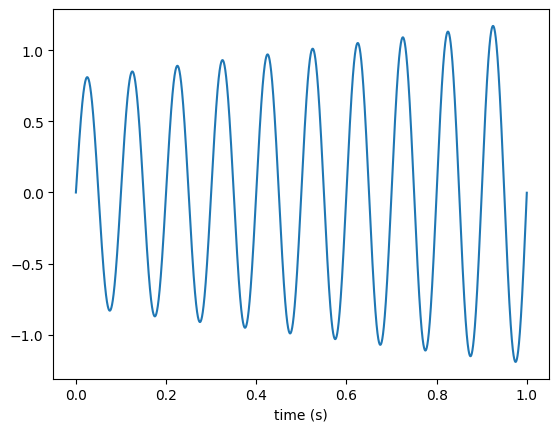

gen = lt.SineGenerator(fo=10, A=Atv)
plt.plot(t, gen(n))
plt.xlabel("time (s)")

Text(0.5, 0, 'time (s)')

… and fo parameter. The following example shows the spectrograms of the generated time-varying sinusoid overlayed with the time-varying fo parameter (in red).

fo_objs = {
    "ConstantPitch": lt.Constant(100),
    "LinearPitch": lt.LineGenerator([0, 1], [50, 150]),
    "InterpolatedPitch": lt.Interpolator(
        [0, 0.3, 0.6, 0.9, 1.0], [100, 90.4, 154.2, 200.6, 250]
    ),
    "FlutteredPitch": lt.FlutterGenerator(100 / 50 * 100 / 100 * 3, bias=100),
    "SinusoidalPitch": lt.SineGenerator(1, 50, bias=100),
}


from scipy.signal import ShortTimeFFT, get_window
from scipy.fft import next_fast_len
from scipy.signal.windows import gaussian

g_std = 8  # standard deviation for Gaussian window in samples

N = lt.fs // 10
w = gaussian(N, std=g_std, sym=True)  # symmetric Gaussian window
w = get_window("hann", N)
SFT = ShortTimeFFT(w, hop=round(N * 0.01), fs=lt.fs, mfft=next_fast_len(N), scale_to="psd")

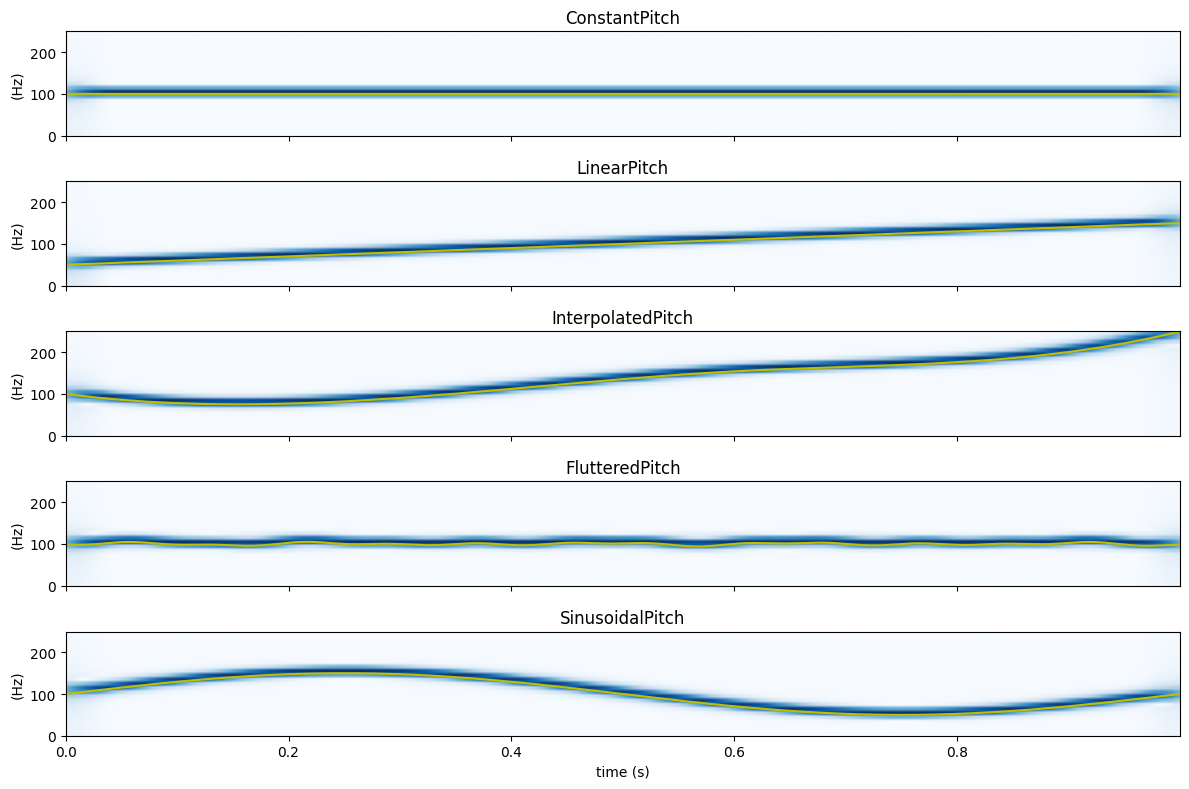

fig, axes = plt.subplots(len(fo_objs), 1, sharex=True, sharey=True, figsize=[12, 8])
for (name, fo), ax in zip(fo_objs.items(), axes):
    gen = lt.SineGenerator(fo=fo)
    t = fo.ts(n)
    fo_vals = fo(n, force_time_axis='tile_data')
    Sx = SFT.stft(gen(n))  # perform the STFT
    im1 = ax.imshow(
        abs(Sx), origin="lower", aspect="auto", extent=SFT.extent(n), cmap="Blues"
    )
    ax.plot(t, fo_vals, "y")
    ax.set_title(name)
    ax.set_ylabel("(Hz)")
axes[0].set_ylim([0, 250])
axes[0].set_xlim([0, t[-1]])
axes[-1].set_xlabel("time (s)")
fig.tight_layout()

# gen = lt.SineGenerator(fo=[10,11], A=1.2, phi0=np.pi / 2)
gen = lt.SineGenerator(fo=[10,10], A=1.2, phi0='random')

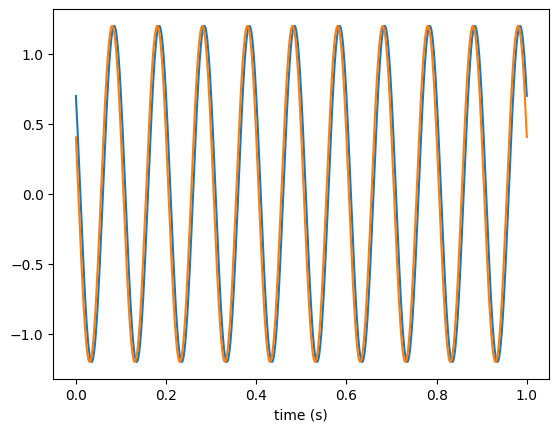

plt.plot(t, gen(n))
plt.xlabel("time (s)")

Text(0.5, 0, 'time (s)')

ModulatedSineGenerator

To simulate amplitude and frequency modulated vocal fold vibration using the kinematic model, ModulatedSineGenerator could be used to generate the reference motion.

fo = 100
modulation_frequency = 0.5  # relative to fo
am_extent = 0.1  # amount of amplitude modulation
fm_extent = 0.1  # amount of frequency modulation
gen = lt.ModulatedSineGenerator(fo, modulation_frequency, am_extent, fm_extent)
x = gen(n)

fig, axes = plt.subplots(1, 2, figsize=[12, 4])

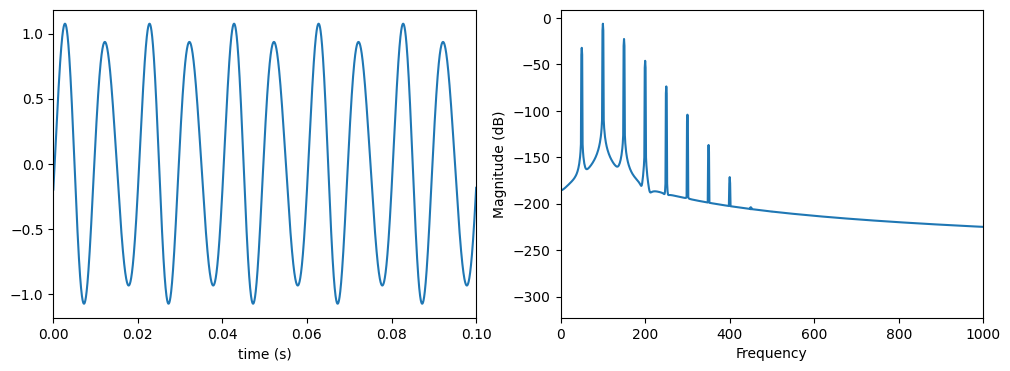

axes[0].plot(t, x)
axes[0].set_xlabel("time (s)")
axes[0].set_xlim([0, 0.1])
axes[1].magnitude_spectrum(x, Fs=gen.fs, scale="dB", window=np.hamming(len(t)))
axes[1].set_xlim([0, min(1000, lt.fs / 2)])

(0.0, 1000.0)

WhiteNoiseGenerator & ColoredNoiseGenerator

To simulate turbulent/aspiration/ambient noise, these generators produce random noise samples with a specified power level.

from scipy.signal import welch

lt.core.set_sampling_rate(10000)

pi = np.pi

b = [1.25]
a = [1, -0.75]

psd_level=0.1

gen0 = lt.WhiteNoiseGenerator(0.1)
# gen1 = ColoredNoiseGenerator(
#     LeTalkerAspirationNoise.cb, LeTalkerAspirationNoise.ca, psd_level=psd_level
# )
gen1 = lt.ColoredNoiseGenerator(2, (300, 3000), "bandpass", psd_level=psd_level)
fs = n = gen0.fs
t = gen0.ts(n)
x = gen0(n)
y = gen1(n)
print(np.var(x))

n = fs // 100
f, Pxx = welch(
    x, fs, "hann", n, n // 2, nfft=1024 * 16, scaling="density", detrend=False
)
f, Pyy = welch(
    y, fs, "hann", n, n // 2, nfft=1024 * 16, scaling="density", detrend=False
)

fig, axes = plt.subplots(1, 2, figsize=[12, 4])

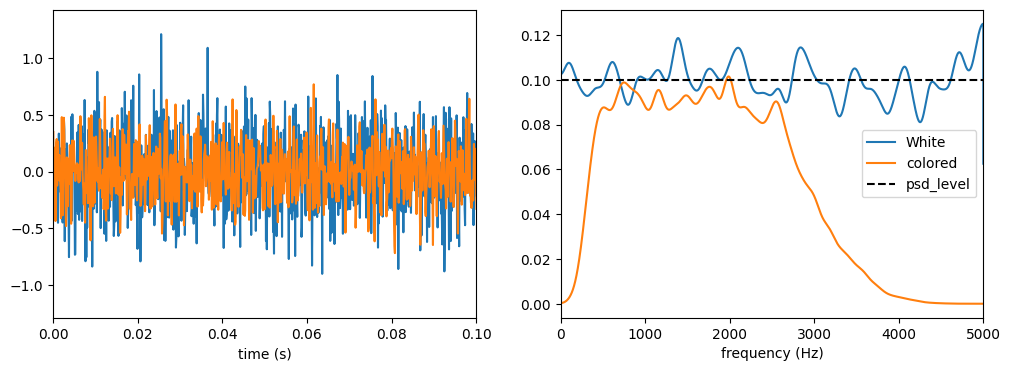

axes[0].plot(t, x)
axes[0].plot(t, y)
axes[0].set_xlabel("time (s)")
axes[0].set_xlim([0, 0.1])
axes[1].plot(f, Pxx * fs / 2, label='White')
axes[1].plot(f, Pyy * fs / 2, label='colored')
axes[1].axhline(psd_level,ls='--',c='k',label='psd_level')
axes[1].set_xlim([0, min(fs / 2, 10000)])
axes[1].set_xlabel("frequency (Hz)")
axes[1].legend();

0.09995925487893695
